35x35mm Aluminium Glass Top Rail for 12 and 15mm Glass

35x35mm Aluminium Glass Top Rail

• 35x35mm External Profile
• 5800mm long aluminium handrail
• Made from structural alloy 6061-T6
• Each length is supplied as a kit which INCLUDES 2 x end caps & 5800mm long glazing rubber to suit 15mm glass
• Railing suits 12, 15, 17.52 and 21.52mm thick glass – simply use correct glazing rubber
• Joiners fit into internal cavity at top of rail
• Rail can be easily cut to required length or angle with a Aluminium cutting blade on a drop saw.

Available in:

• Satin Anodised
• Matt Black
• Matt White
• Mill finish - Suitable for Powder coating to any colour of your choice.

Note: If using glass that is not 15mm you will need to order the glazing rubber separately.

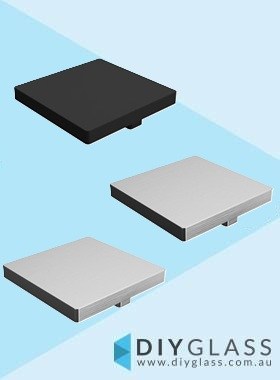

End Cap for 35x35mm Aluminium Glass Top Rail

• 35mm W x35mm H x 4mm T
• Flat End Cap with Tab that presses into the cavity of the rail
• Includes one pointed grub screw in the tab to help secure the cap onto the rail

Available in:

• Satin Anodised
• Matt Black
• Matt White
• Mill finish - Suitable for Powder coating to any colour of your choice.

Note: 2 End Caps are supplied with each length of rail. Only order these if you need extras

Wall Bracket for 35x35mm Aluminium Glass Top Rail

• Wall Bracket
• 43mm W x 63mm H x 25mm D
• Rail fits inside the bracket cavity
• Internal cavity depth: 25mm
• 1 x 6.5mm Counter Sunk Fixing Hole
• Includes one pointed grub screw to secure bracket to rail

Available in:

• Stain - 316 Stainless Steel
• Matt Black
• Matt White
• Mill finish - Suitable for Powder coating to any colour of your choice.

Offset Wall Bracket for 35x35mm Aluminium Glass Top Rail

• Offset Wall Bracket
• 110mm W x 42mm H x 20mm D x 6mm T
• Rail fits inside the bracket cavity
• Internal cavity depth: 20mm
• 1 x 7mm Counter Sunk Fixing Hole
• Includes one pointed grub screw to secure bracket to rail

Available in:

• Stain - 316 Stainless Steel
• Matt Black
• Matt White

Flat Wall Plate for 35x35mm Aluminium Glass Top Rail

• Flat Wall Plate
• Ideal when it is a tight gap between the glass and the wall and a standard wall bracket will not fit
• 105mm W x 35mm H x 5mm T
• 2 Pcs per pack (1 x left and 1 x right handed)
• Screws to the end of the rail via 2 x Countersunk Holes in the wall bracket.
• 1 x 6.5mm Counter Sunk Fixing Hole
• Includes 4 x CSK Fixing Screws for securing the plates to the rail

Available in:

• Stain Anodised
• Matt Black
• Matt White
• Mill finish - Suitable for Powder coating to any colour of your choice.

Inline Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm Inline Joiner
• Use when 2 lengths of rail join in a straight line
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: For maximum strength the joiner must be installed over the centre of a glass panel.

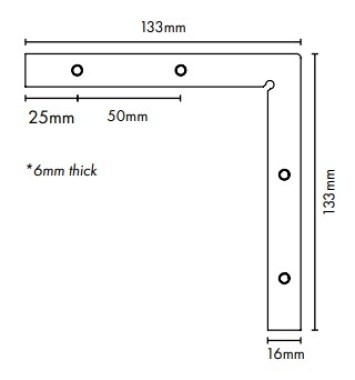

90 Degree Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm 90 Degree Joiner
• Use when 2 lengths of rail join at a 90 degree corner
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: Rail must be neatly cut on a 45 degree mitre. A aluminium cutting blade on a drop saw will give best results

Adjustable Horizontal Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm Horizontal Adjustable Joiner
• Use when 2 lengths of rail join on a horizontal plane at any angle other then 90 degrees
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: Rail must be neatly cut on the correct angles. A aluminium cutting blade on a drop saw will give best results

Adjustable Vertical Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm Vertical Adjustable Joiner
• Use when 2 lengths of rail join on a vertical plane at any angle other then 90 degrees
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: Rail must be neatly cut on the correct angles. A aluminium cutting blade on a drop saw will give best results

Glazing Rubber for 35x35mm Aluminium Glass Top Rail

• 35x35mm Glazing Rubber
• 6000mm length
• Fits between the glass and the rail

Available for:

• 12mm Glass
• 15mm Glass
• 17.52mm Glass
• 21.52mm Glass

Note: 15mm Glazing Rubber comes with the rail so you only need to order rubber if you are using glass that is not 15mm thick or you need spare rubber
