Shower Screen Glass Brace Panels

846x150x 8mm - Glass Brace - Clear Toughened Glass

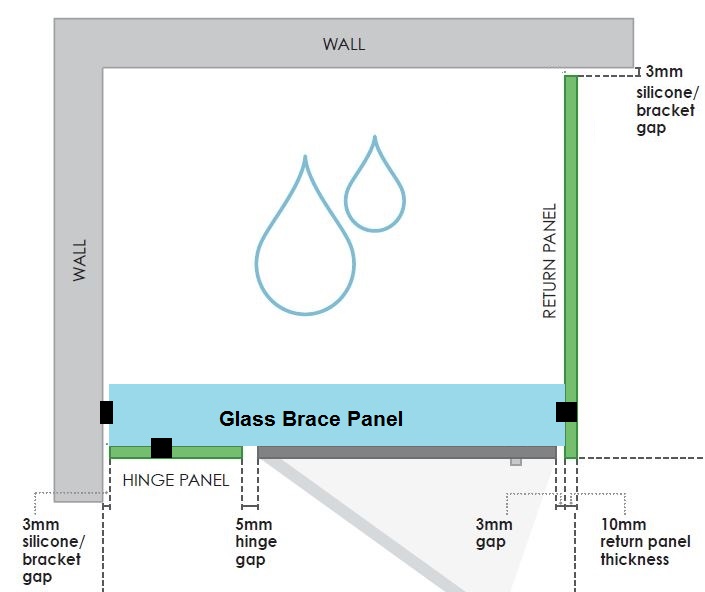

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 846mm •Depth: 150mm •Thickness: 8mm •Weight: 2.5kg •Use With Hinge Panel: 229mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 16.20

857x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 857mm •Depth: 150mm •Thickness: 8mm •Weight: 2.6kg •Use With Hinge Panel: 240mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 17.70

896x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 896mm •Depth: 150mm •Thickness: 8mm •Weight: 2.7kg •Use With Hinge Panel: 279mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 19.25

946x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 946mm •Depth: 150mm •Thickness: 8mm •Weight: 2.8kg •Use With Hinge Panel: 329mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 20.80

996x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 996mm •Depth: 150mm •Thickness: 8mm •Weight: 3.0kg •Use With Hinge Panel: 379mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 22.35

1046x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 1046mm •Depth: 150mm •Thickness: 8mm •Weight: 3.1kg •Use With Hinge Panel: 429mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 23.90

1096x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 1096mm •Depth: 150mm •Thickness: 8mm •Weight: 3.3kg •Use With Hinge Panel: 479mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 25.40

1146x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 1146mm •Depth: 150mm •Thickness: 8mm •Weight: 3.4kg •Use With Hinge Panel: 529mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 26.95

1157x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door. •Width: 1157mm •Depth: 150mm •Thickness: 8mm •Weight: 3.6kg •Use With Hinge Panel: 540mm Requires 2 x Glass Brace Brackets and 1 x Wall Bracket for Installation.

$ 28.50

1196x150x 8mm - Glass Brace - Clear Toughened Glass

Glass Brace panel used to Connect the hinge panel to a return panel about the door.

Width: 1196mm
Depth: 150mm
Thickness: 8mm
Weight: 3.6kg
Use With Hinge Panel: 579mm

Requires 2 x Glass Brace Brackets (Chrome Plated or Matt Black Finish) and 1 x Wall Bracket (Chrome Plated or

$ 30.00

Offset Wall Bracket - Chrome Plated - For Shower Screen

Used to fix Hinge and Return/Fixed panels to the wall in a shower screen.

3 Per Panel recommended

These are easier to install then the hidden screw wall bracket. The screw can be marked and installed with the glass standing in place.

Offset Wall Bracket for Shower Screens
Chrome Finish
3mm Gap between glass and wall
Square Finish Edges
Suitable for 8mm & 10mm Glass
2 x Compression/Friction screws
No holes in glass required
Made from solid brass
1 x Fixing screw and Clear Gaskets Provided

Silicon must be used along glass edge when friction brackets used.

Some people also use these along the floor however we do not recommend this as the screw will break the waterproofing membrane, the whole glass weight will be positioned on the bracket rather then spread across the length of the sheet and the glass will be held 3mm off the floor.

$ 13.00

Small Glass Brace Bracket - Chrome Plated - For Shower Screen

Used to stiffen and brace a return or hinge panel by fixing a brace panel along the top and tying them together.

Can also be used to tie a Fixed panel back to the wall.

Small Glass Brace Bracket
Square Finish Edges
Brace 8mm thick glass hood to 10mm thick return & hinge panels
2 x compression/friction screws
Slimline Design
No holes required in glass
Made from solid brass

Tip: Place bracket ensuring glass door does not hit when swinging inwards.

$ 24.00

Large Glass Brace Bracket - Chrome Plated - For Shower Screen

Used to stiffen and brace a return or hinge panel by fixing a brace panel along the top and tying them together.

Can also be used to tie a Fixed panel back to the wall.

Small Glass Brace Bracket
Square Finish Edges
Brace 8mm thick glass hood to 10mm thick return & hinge panels
4 x compression/friction screws
Sturdy design
No holes required in glass
Made from solid brass

Tip: Place bracket ensuring glass door does not hit when swinging inwards.

$ 29.55

Wall Bracket - Matt Black - For Glass Shower Screen

Used to fix Hinge and Return/Fixed panels to the wall.

3 Per Panel recommended

Wall Bracket
3mm Gap between glass and wall
Matt Black Finish
Square Finish Edges
Suitable for 8mm & 10mm Glass
2 x Compression/Friction screws
No holes in glass required
Made from solid brass
1 x Fixing screw and Clear Gaskets Provided

Silicon must be used along glass edge when friction brackets used

Some people also use these along the floor however we do not recommend this as the screw will break the waterproofing membrane, the whole glass weight will be positioned on the bracket rather then spread across the length of the sheet and the glass will be held 3mm off the floor.

$ 10.65

Offset Wall Bracket - Matt Black - For Glass Shower Screen

Used to fix Hinge and Return/Fixed panels to the wall.

3 Per Panel recommended

These are easier to install then the hidden screw wall bracket. The screw can be marked and installed with the glass standing in place.

Wall Bracket
Matt Black Finish
3mm Gap between glass and wall
Square Finish Edges
Suitable for 8mm & 10mm Glass
2 x Compression/Friction screws
No holes in glass required
Made from solid brass
1 x Fixing screw and Clear Gaskets Provided

Silicon must be used along glass edge when friction brackets used.

Some people also use these along the floor however we do not recommend this as the screw will break the waterproofing membrane, the whole glass weight will be positioned on the bracket rather then spread across the length of the sheet and the glass will be held 3mm off the floor.

$ 16.20

Large Glass Brace Bracket - Matt Black - For Glass Shower Screen

Used to stiffen and brace a return or hinge panel by fixing a brace panel along the top and tying them together.

Can also be used to tie a Fixed panel back to the wall.

Small Glass Brace Bracket
Matt Black Finish
Square Finish Edges
Brace 8mm thick glass hood to 10mm thick return & hinge panels
4 x compression/friction screws
Sturdy design
No holes required in glass
Made from solid brass

Tip: Place bracket ensuring glass door does not hit when swinging inwards.

$ 34.80

Small Glass Brace Bracket - Matt Black - For Glass Shower Screen

Used to stiffen and brace a return or hinge panel by fixing a brace panel along the top and tying them together.

Can also be used to tie a Fixed panel back to the wall.

Small Glass Brace Bracket
Matt Black Finish
Square Finish Edges
Brace 8mm thick glass hood to 10mm thick return & hinge panels
2 x compression/friction screws
Slimline Design
No holes required in glass
Made from solid brass

Tip: Place bracket ensuring glass door does not hit when swinging inwards.

$ 27.55

Custom Glass

Glass Supplied to almost any size and shape. Glass is cut from a 5500x2800mm panel. Glass supplied in thicknesses from 4mm to 19mm thick. Please email your requirements to sales@diyglass.com.au including and drawing of your required panel and your postcode for delivery.

Call for price
